FIBER OPTIC SYSTEM
-

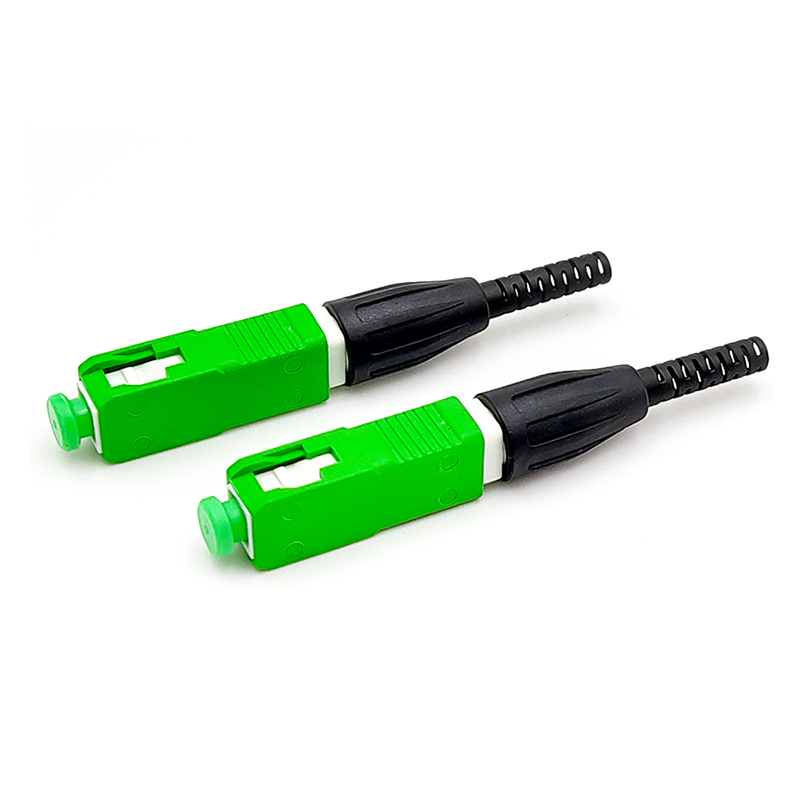

ESC250P-LW single-mode fiber optic
Foclink fast connectors make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Our fast connector can greatly reduce the assembly and set up time. The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site.
-

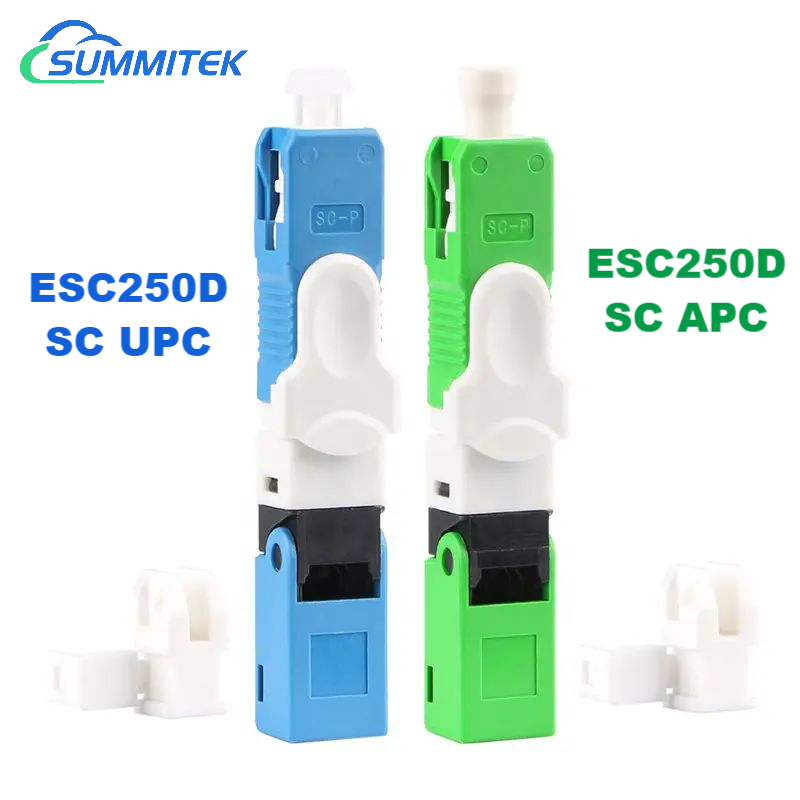

ESC250D FTTH SC/APC SC/UPC Fiber Optic Fast Connector
ESC250D is a high end fast connector, which is designed for more stable performance and with unique appearance. SUMMITEK's Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN&CCTV applications and FTTH.
-
FTTH 58mm SC APC Single-Mode Fiber Optic Quick Connector
Product IntroductionFiber optic distribution box applied to FTTH that links in the access of the terminal system, especially suitable for the outdoor wall hanging or hoop type. Feature* Design of double layer structure, the upper layer is the optical splitter wiring layer, the lower layer is the fiber fusion layer. * Easy to operate. Usually installed as wall mounted in the building or at the green belt. * The optical splitter module is designed of modular drawer type, and it has high interchangeability and generality. * SMC complex plastic or Cold rolled plate without material optional. * Fixed cable and protection. * Protect optical fiber splice joint. * Termination function of fiber core. Application* Telecommunication Networks. * Communication System. * Test Equipment. * Fiber CATV. * FTTH.
-

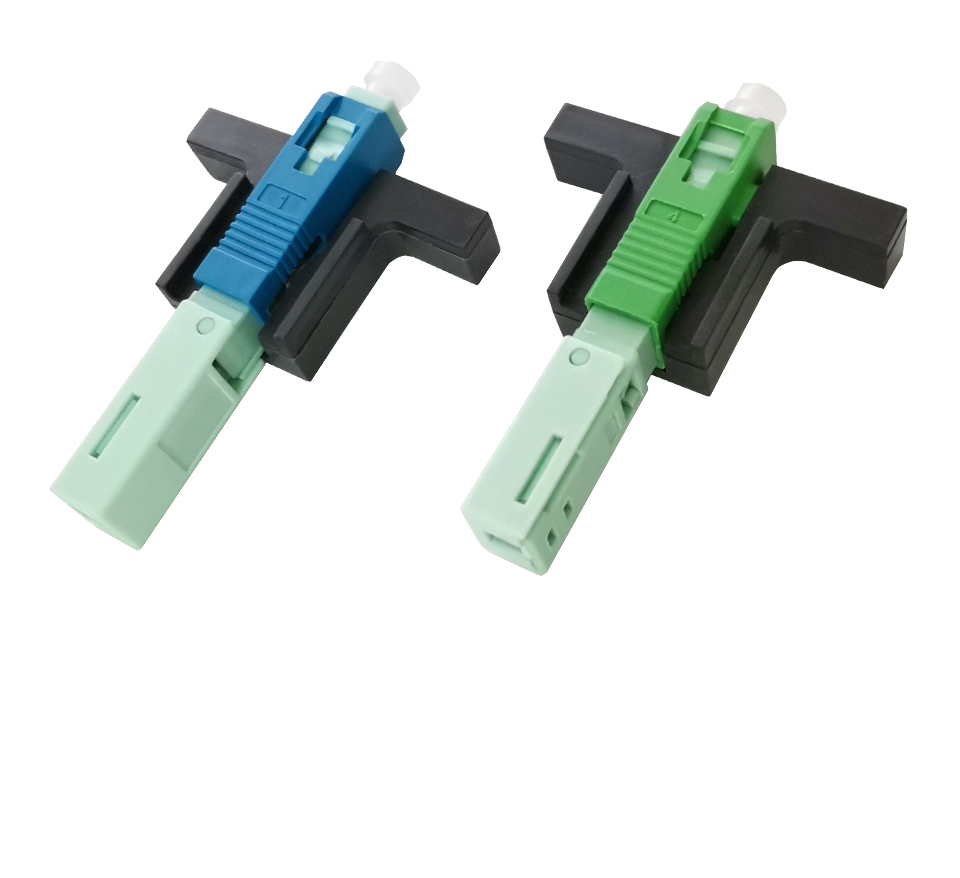

ESC920H SC APC Fast Connector Mechanical Fiber Optic Connector-Fiber Pre-embedded Less than 0.3dB
Quick Assembly Connector (also named “ No-Polish Connector ” , “Pre-polish Connector” or “ Fast Connector ”) is an easy-to-install device. No tool or jig is required. It is universal for 250um /900um / 2.0mm / 3.0mm / Flat Cable. it was designed for fast termination with pre-polished connector. Using V groove technology, it requires no epoxy. With transparent body, the connecting result can be seen by Fiber Checker immediately. This is an ideal solution, either for outside plant or inside a building.
-
Drop Test(4m concrete floor, once each direction, three times total)
Single-mode and multimode fibers Both Construction and maintenance Aerial, buried, underground, pedestal Insert or outside buildings FTTx, Metro and Enterprise networks Up to qo Gigabit data rates High density substitute for connectors
-

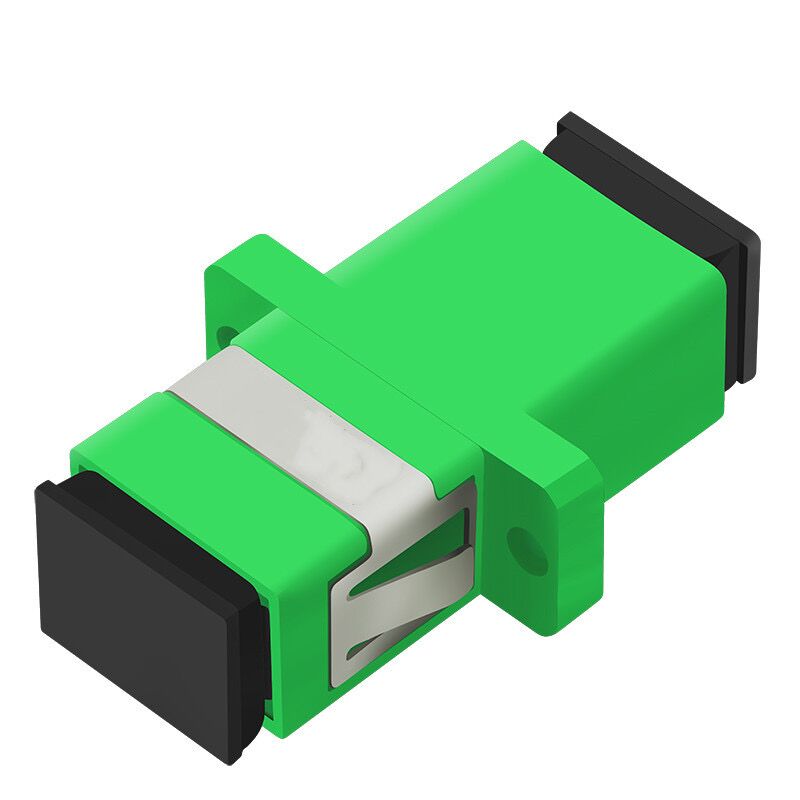

FTTH SC APC Adapter Connector Fiber Optic Adapter Head Coupler Square Joint Adapter Simplex Single Mode Plastic
Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time,fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.
