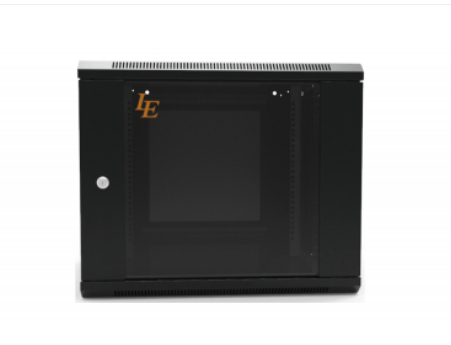

WS1-6404 - 4U 600X450 WALL MOUNT RACK WITH 60KG OF MAXIMAL STATIC LOAD

4U 600x450 Wall Mount Rack with 60kg of Maximal Static Load

• Welded frame, single section, compatible with 19'' standard equipment;

• 5 mm tempered glass front door with over 180 turning degree;

• Removable side panel, easy to install and lock optional;

• Cable entry on the top and bottom;

• L-shaped mounting profile, easy to adjustable on the mounting rail;

• Fan cutout on the top, easy to install fan;

• Installing back panel, easy to fix on the wall;

• Various accessories for option

• Standard: Comply with ANS/EIA RS-310-D, IEC297-2, DIN414191, PART7 ETSI Standard

• Material: SPCC quality cold rolled steel; Mounting profile: thickness 1.2mm; Tempered glass: thickness: 5.0mm

• Loading Capacity: Static loading - 60kg

• Degree of Protection: IP20

• Surface finish: Degreasing, Pickling, Phosphating, Powder Coated
