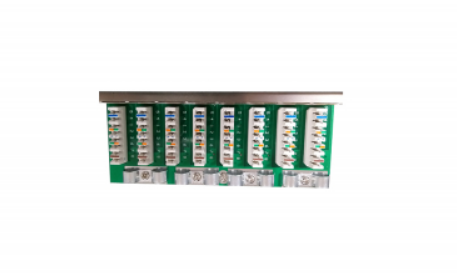

FTP CAT5E PATCH PANEL WITH 48 PORTS

FTP Cat5e Patch Panel with 48 Ports

• Category: Cat5e

• Type: FTP

• Number of Ports: 48

• Color: Black

• Contact Resisntance: 20M OHMS Max

• Insulation Resistance: 500M OHMS 500V DC

• Withstand Voltage: DC1000V AC700V RMS 60HZ, 1MIN

• Cat5e Permanent Link: Conform to ANSI/TIA/EIA 568B, 2-10

• Storage Temperature: -40° TO +70°

• Operation Temperature: -10° TO +60°

• Shielded Material: Cold Rolled Plate

• IDC Material: PC UL94Y-0, Accept 22-26 AWG Solid Wire

• Terminal: Phosphor Bronze, Tin Gold 3U”/6U”/15U”/30U”/50U”

• RJ45 Contact Life: 750 Times Min

• IDN Life: 250 Times Min
